90° Heavy Duty Glass-To-Glass Hinge

90° Heavy Duty Glass-To-Glass Hinge

SKU:V103-CH

48 in stock

SIGN UP TO BE A WHOLESALER

90° Heavy Duty Glass-To-Glass Hinge

Description:

  • Hole Cutout Diameter: 12mm (1/2")
  • Material: Solid Brass
  • Compatibility: 10mm (3/8") and 12mm (1/2") tempered glass panel
  • Accessories included: Screws, Anchors, Allen-Wrench, Fabrication Diagram, Rubber & PVC Gaskets

Finishes Available:

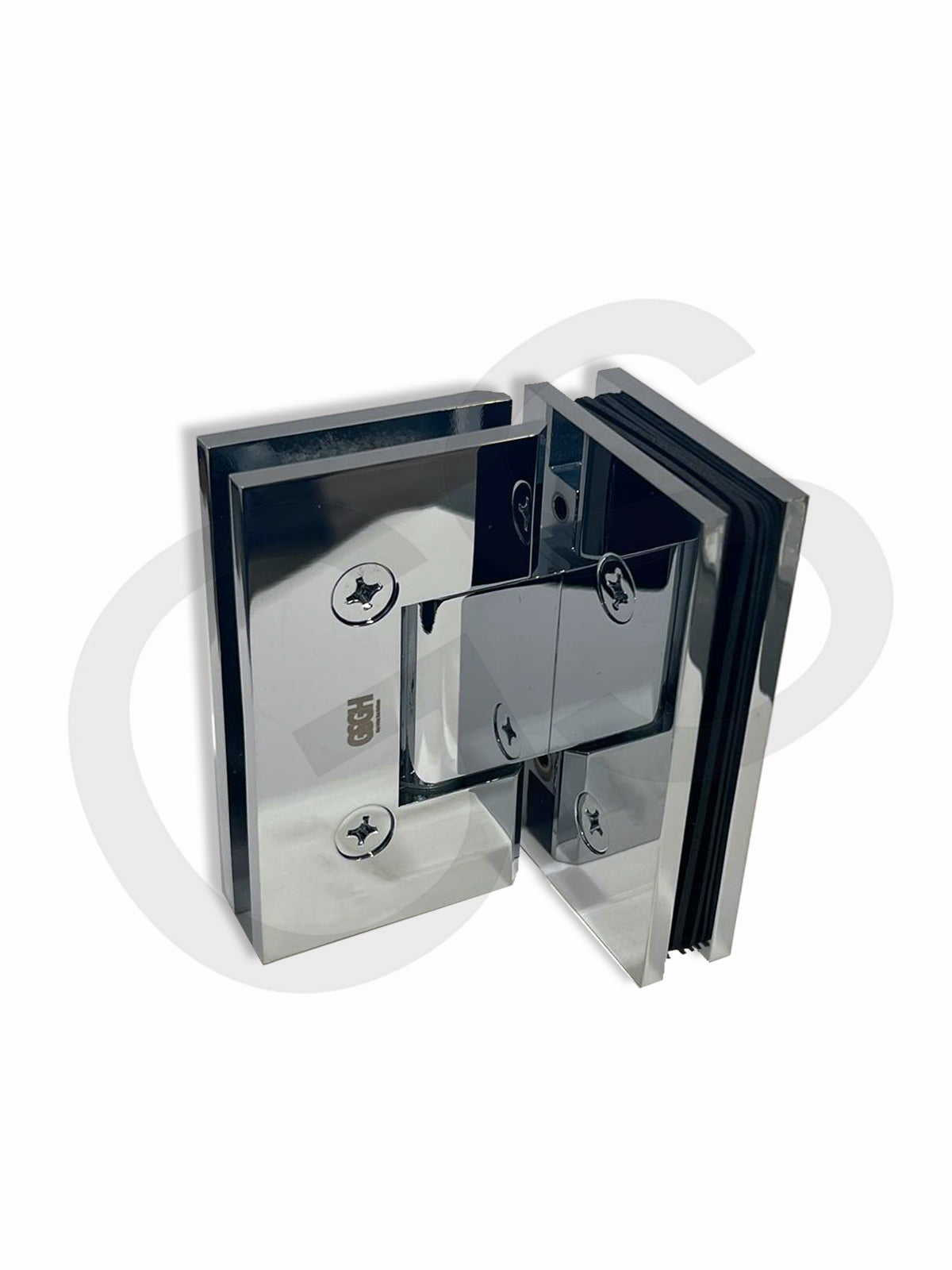

  • Chrome

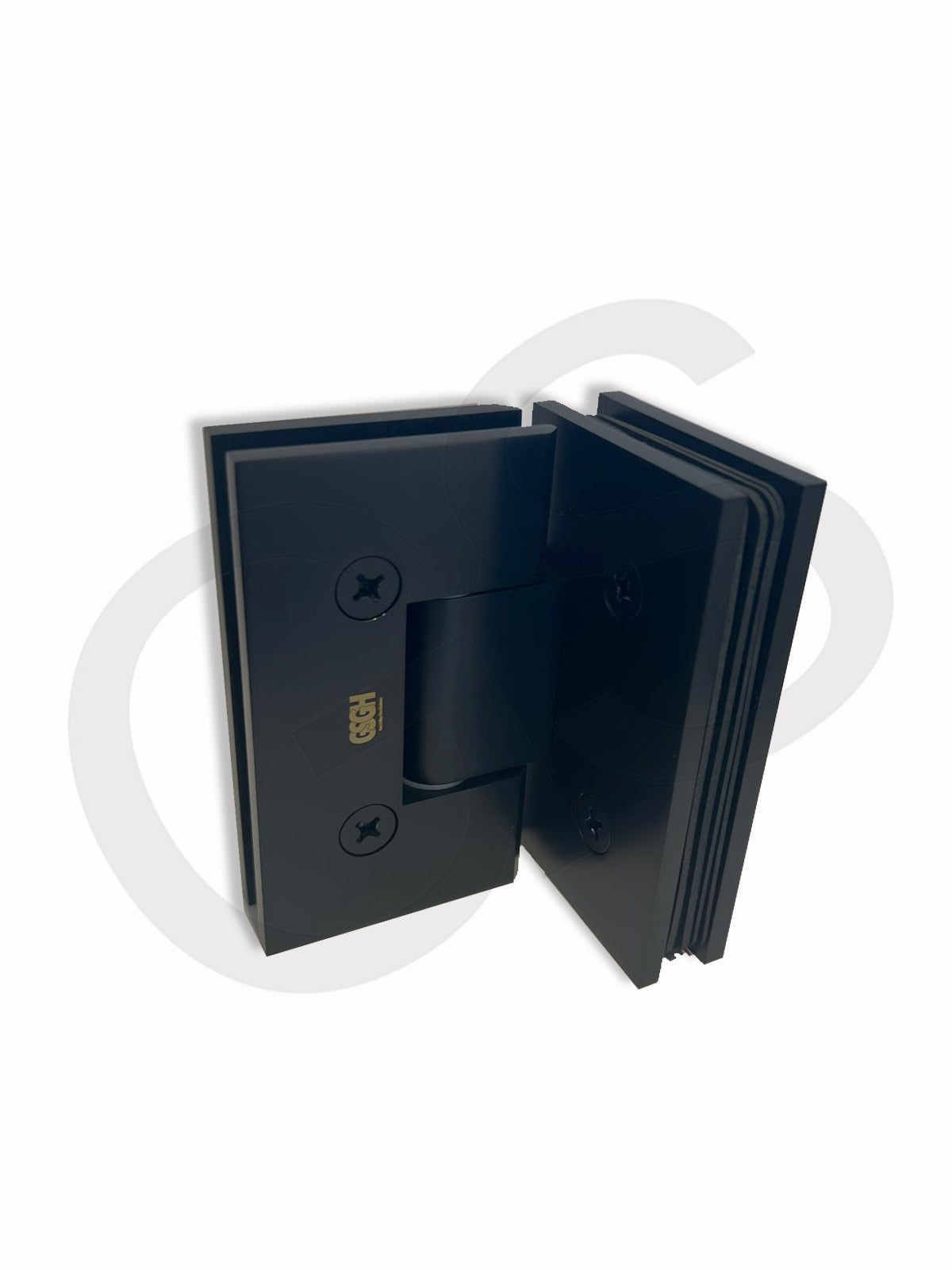

  • Matte Black

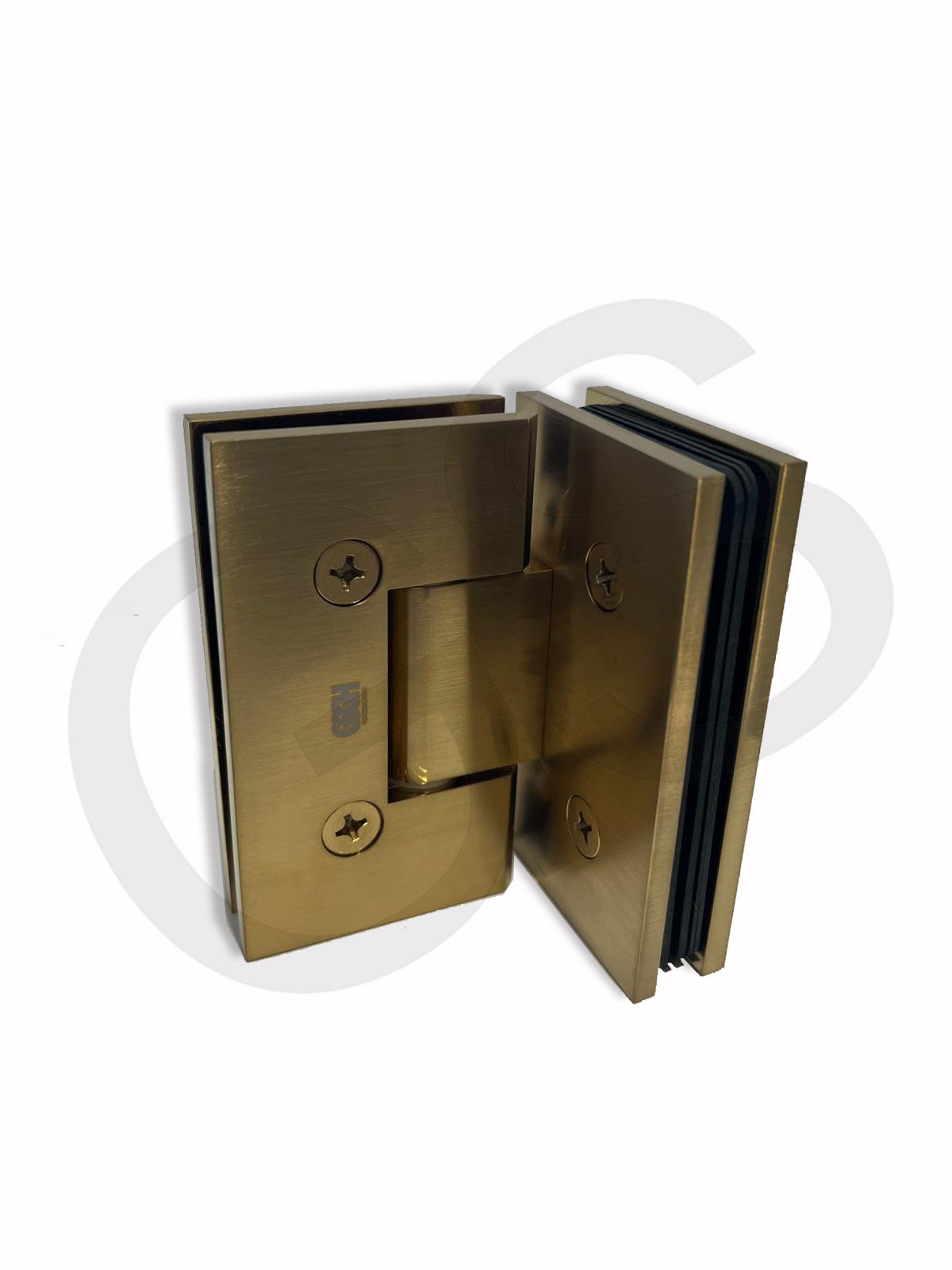

  • Satin Brass

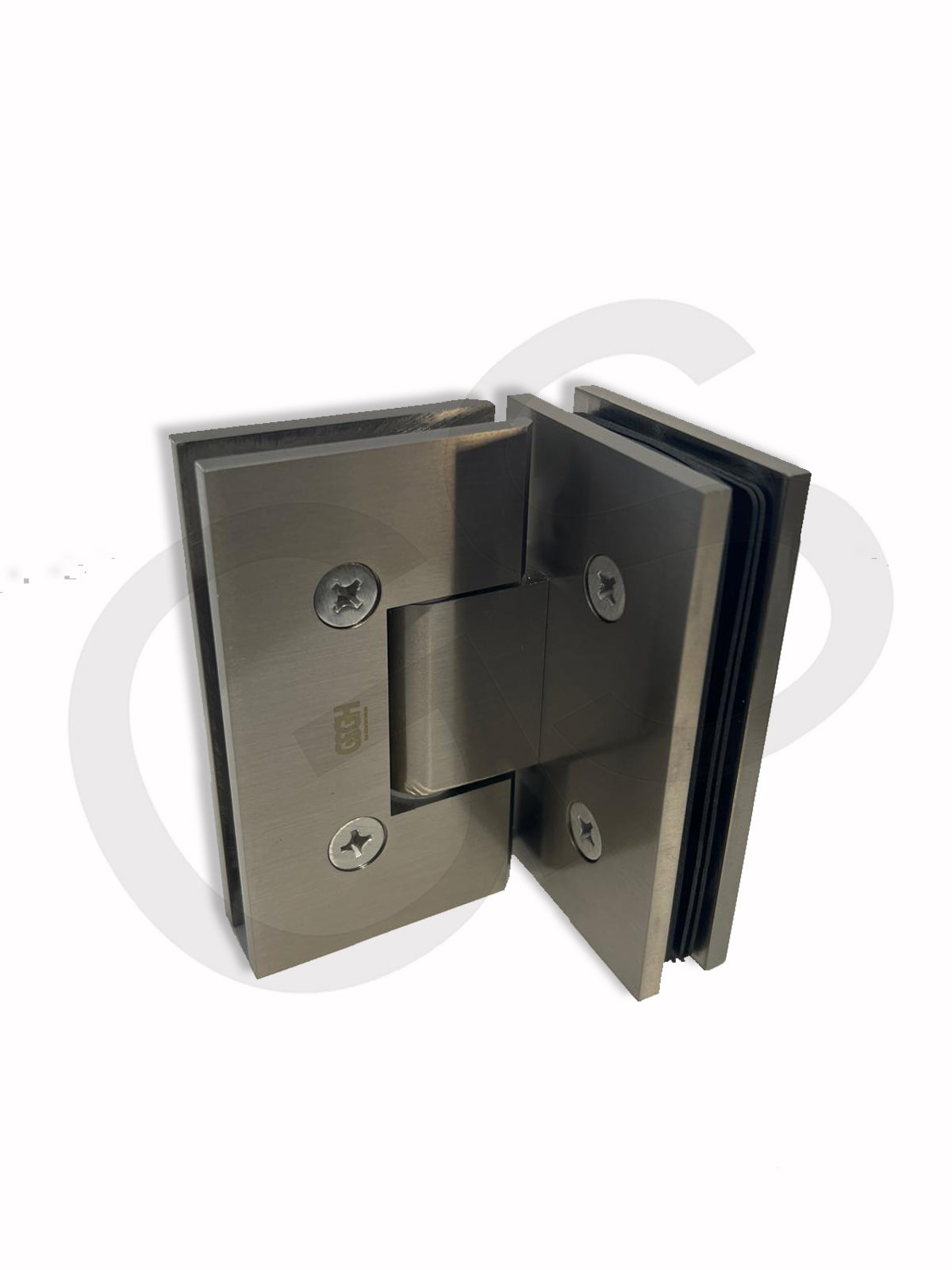

  • Brushed Nickel
Maximum Capacities for 10-12mm glass
Using 2 Heavy Duty Hinges- Weight: 110lbs/50kgs; Door Width: 36"/914mm
Using 3 Heavy Duty Hinges- Weight: 140lbs/63kgs; Door Width: 36"/914mm
